Power Swage Machines

Production ready semi-automatic swagers use a hydraulically actuated drawbolt with an elastomeric expander to hydrostatically form the tube outward into machined grooves within the fitting. The fitting is held by metal split dies during the swaging process. Semi-automatic power swagers can elastomerically swage fittings to tubing within 10 seconds.

The semi-automatic power machines are best for high volume tube assembly production using tube materials such as 21-6-9, 304 and 321 CRES, 6061-T6 aluminum and CP titanium with standard wall thickness. The machines are housed on sturdy mobile carts complete with tool storage for easy quick tool access and reliability.

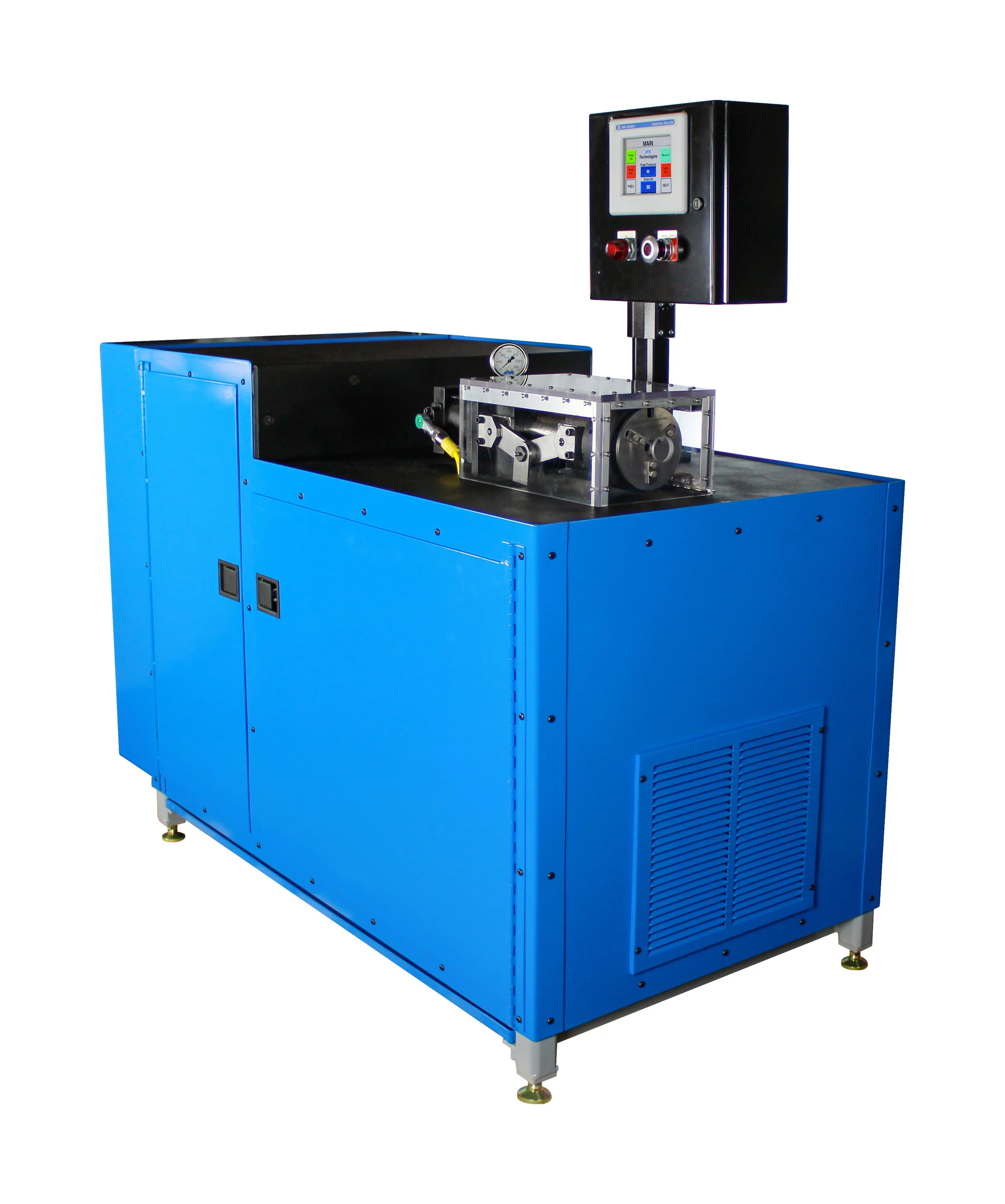

Semi-Automatic Power Swage Machine

Model# WG-PTS-100-04-12
Computer-controlled, hydraulic/power unit equipped with a precision head capable of swaging .250″ through .750 O.D. tubing.

Model# WG-PTS-200-12-40
Computer-controlled, hydraulic/power unit equipped with a precision head capable of swaging .750″ through 2.50″ O.D. tubing.

Model# WG-PTS-400-04-40
Computer-controlled, hydraulic/power unit equipped with dual precision heads capable of swaging .250″ through 2.50″ O.D. tubing.


Power Swager Tooling

Tools required to operate the Semi-Automatic Power swagers must be ordered specific for the tubing outside diameter.

Part Codes

SPLIT DIES

Beeding Split Die

WG-PTS-100-HD-BD
WG-PTS-200-HD-BD

Sleeve Split Die

WG-PTS-100-HD-SD WG-PTS-200-HD-SD

Union Split Die

WG-PTS-100-HD-UD WG-PTS-200-HD-UD

Bleeding Split Die

Semi-Automatic Sleeve Split Die

Adapters

WG-PTS-100-A
WG-PTS-200-A



Anvils

WG-PTS-100-AV
WG-PTS-200-AV

Power Swager Adapter

Power Swager Anvil

When ordering, write out part number by specifying: Part code + Tube OD


Please contact us for more information and specifications.
